Sheep Products
For Information on Brazzen Sheep Products ...
For Pricing and Details of Brazzen Sheep Products ...

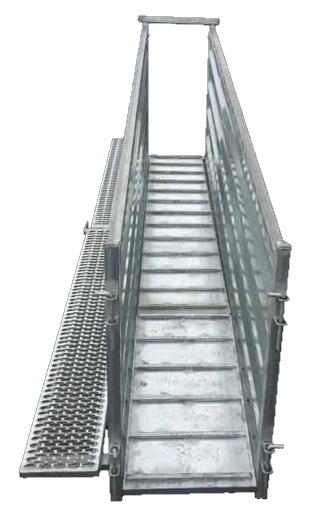

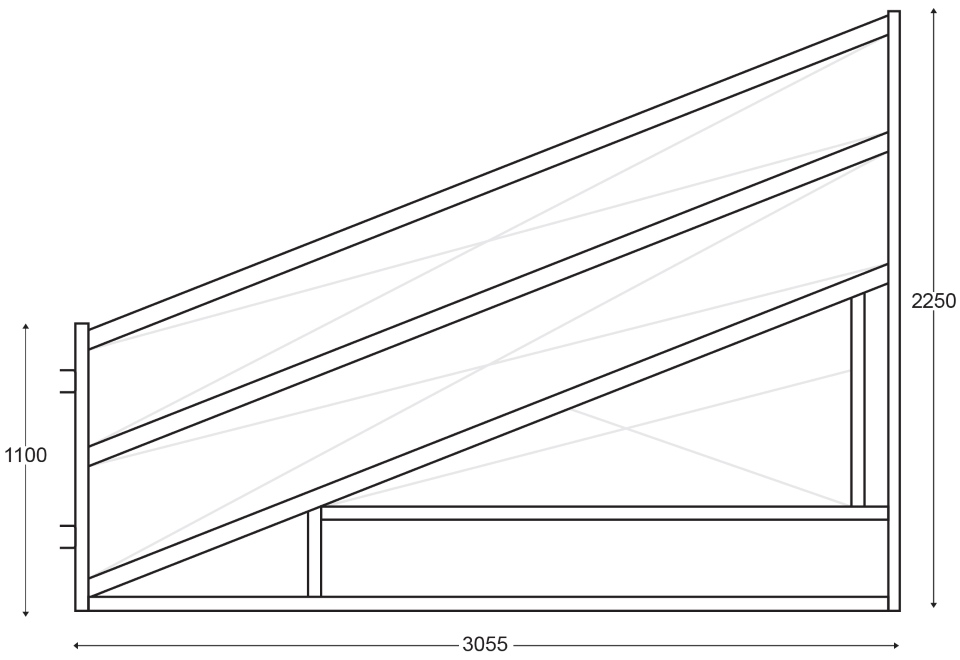

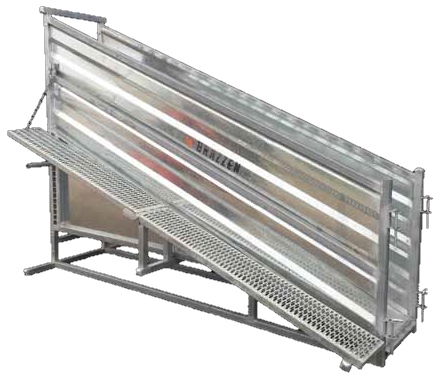

Adjustable Loading Ramp
- Manufactured from Galvanised Steel
- Robust construction
- Handy lugs for ground pinning
- Fully sheeted
- Height is 1000mm to discourage jumping
| Sheep Ramp | Width | Depth | Height | Weight |
|---|---|---|---|---|
| SLRFP | 3055 (10') | 650 (2.13') | 2250 (7.38') | 290kg |
| +Walkway SLRWFP | 3055 (10') | 650 (2.13') | 2250 (7.38') | 310kg |

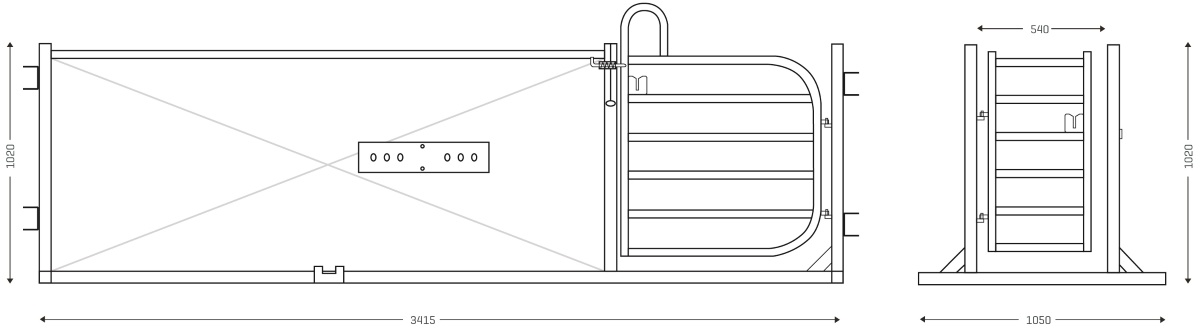

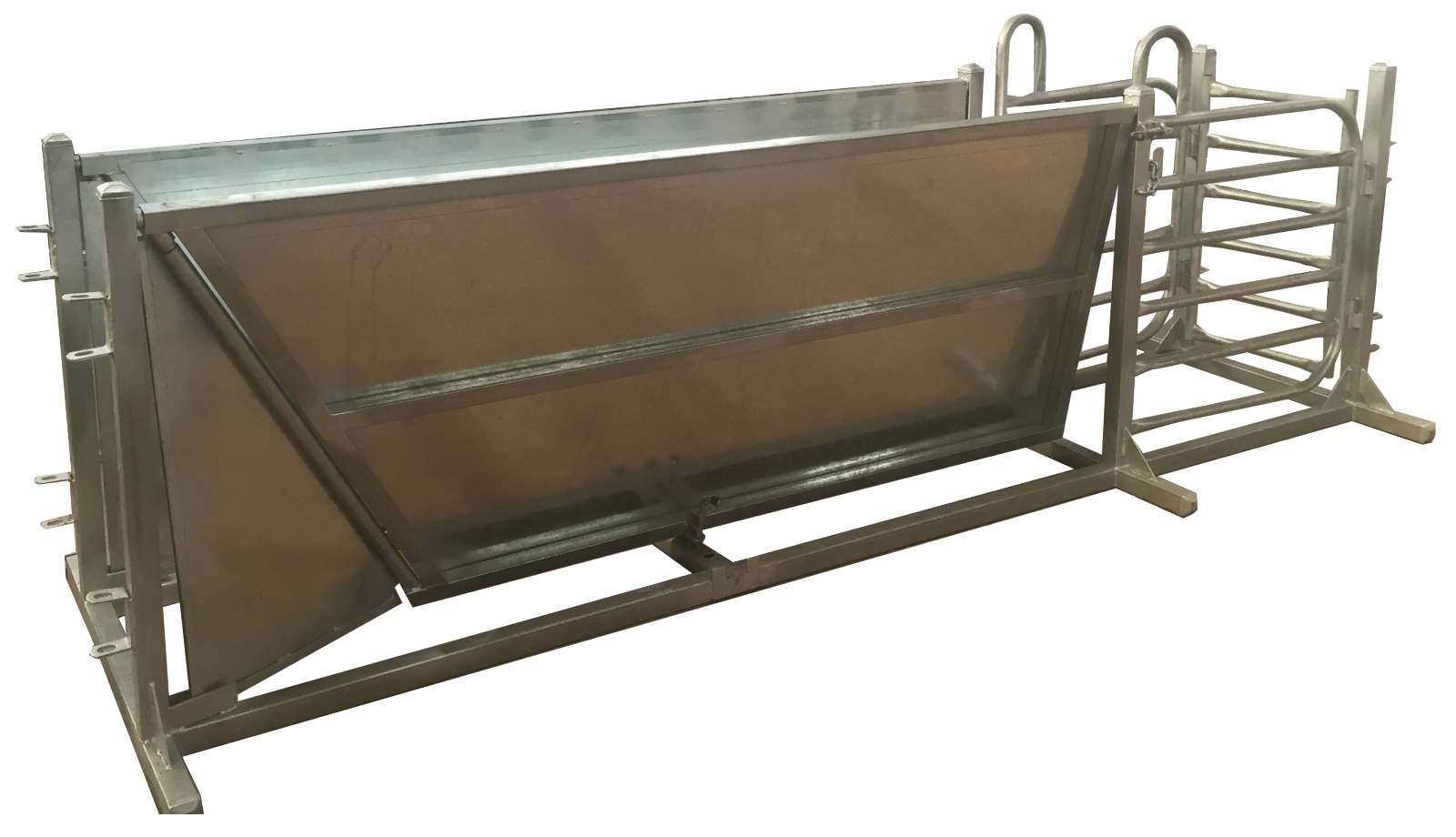

Adjustable V-Race
- Manufactured from Galvanised Steel
- Robust construction
- Fully sheeted
- The vee profile minimises the chance of small stock turning around in the race
- Races have a fully sheeted outer arc (prevents legs and heads getting out, and improves stock flow)
- Sliding gates come supplied as conventional push in types, or as push out type
- Races are made without overhead bracing. This eliminates the danger of an operator getting his arm caught between the yard and beast
- Strength is given by a combination of the curved nature of the yards, and the underground bracing
- Adjustable sections are also available
| Sheep Race | Width | Depth | Height | Weight |
|---|---|---|---|---|
| SRA | 3410 (11.2') | 540 (1.77') | 1020 (3.35') | 218.6kg |

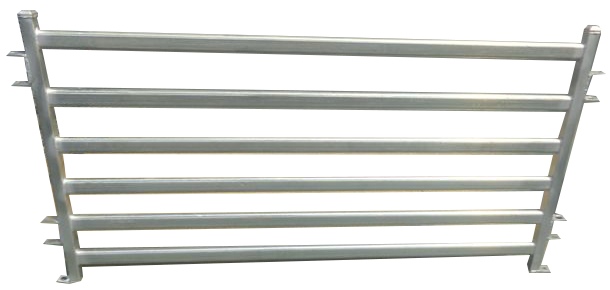

Premium Sheep Panels
- Manufactured from Galvanised Steel
- Robust construction
- Available in lengths of 1.0m, 2.0m and 3.0m
- Panels can be used in Permanent or Portable applications
- Handy lugs for ground pinning
- Wide top rail for operator comfort when leaning over or accessing yard to yard
- Lamb proof rail spacing
- Height is 1000mm to discourage jumping
- Rails: 60mm x 30mm (2.36" x 1.18") oval
- Posts: 40mm x 40mm (1.57" x 1.57") tube
| Sheep Panel | Horizontal | Uprights | Height | A-Width |
|---|---|---|---|---|
| Premium SPP1.0 | 60x30 | 40x40 | 1000 (3.28') | 1000 (3.28') |
| Premium SPP2.0 | 60x30 | 40x40 | 1000 (3.28') | 2000 (6.56') |
| Premium SPP3.0 | 60x30 | 40x40 | 1000 (3.28') | 3000 (9.84') |
| 7 Rail SPB7 | 32OD | 32OD | 1000 (3.28') | 3000 (9.84') |
| Blind SPPB1.0 | 60x30 | 40x40 | 1000 (3.28') | 1000 (3.28') |
| Blind SPPB2.0 | 60x30 | 40x40 | 1000 (3.28') | 2000 (6.56') |
| Blind SPPB3.0 | 60x30 | 40x40 | 1000 (3.28') | 3000 (9.84') |
Brazzen 7 Rail
- 7 rail - 32od pipe
- Lightweight
- Manufactured from Galvanised Steel
- Robust construction

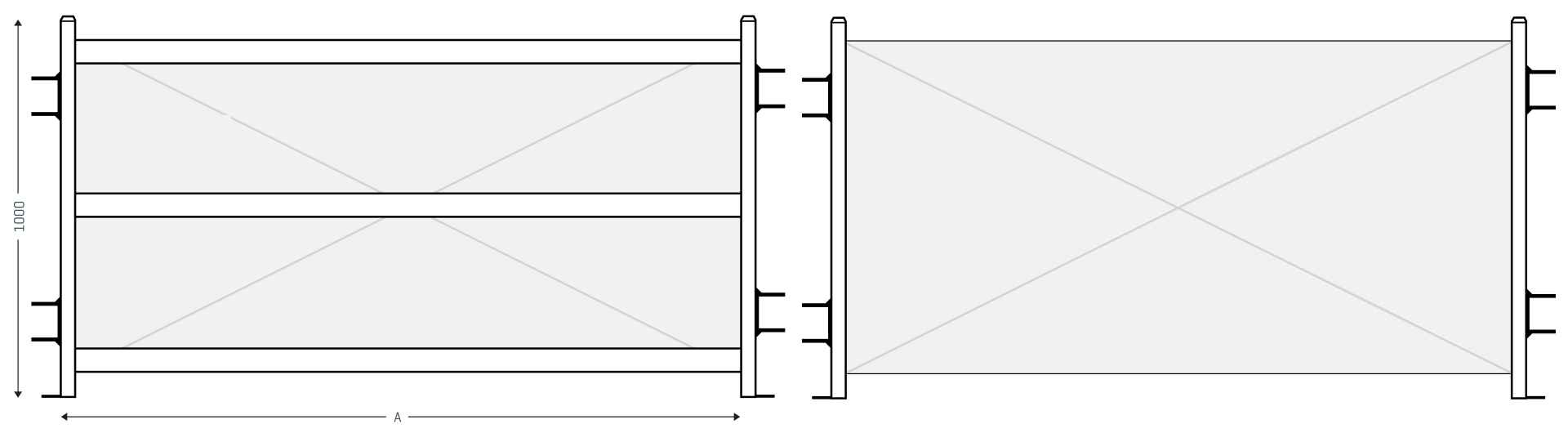

Blind Sheep Panels
- Manufactured from Galvanised Steel
- Robust construction
- Designed to reduce distractions and improve the flow of stock
