Cattle Products

Cattle Products

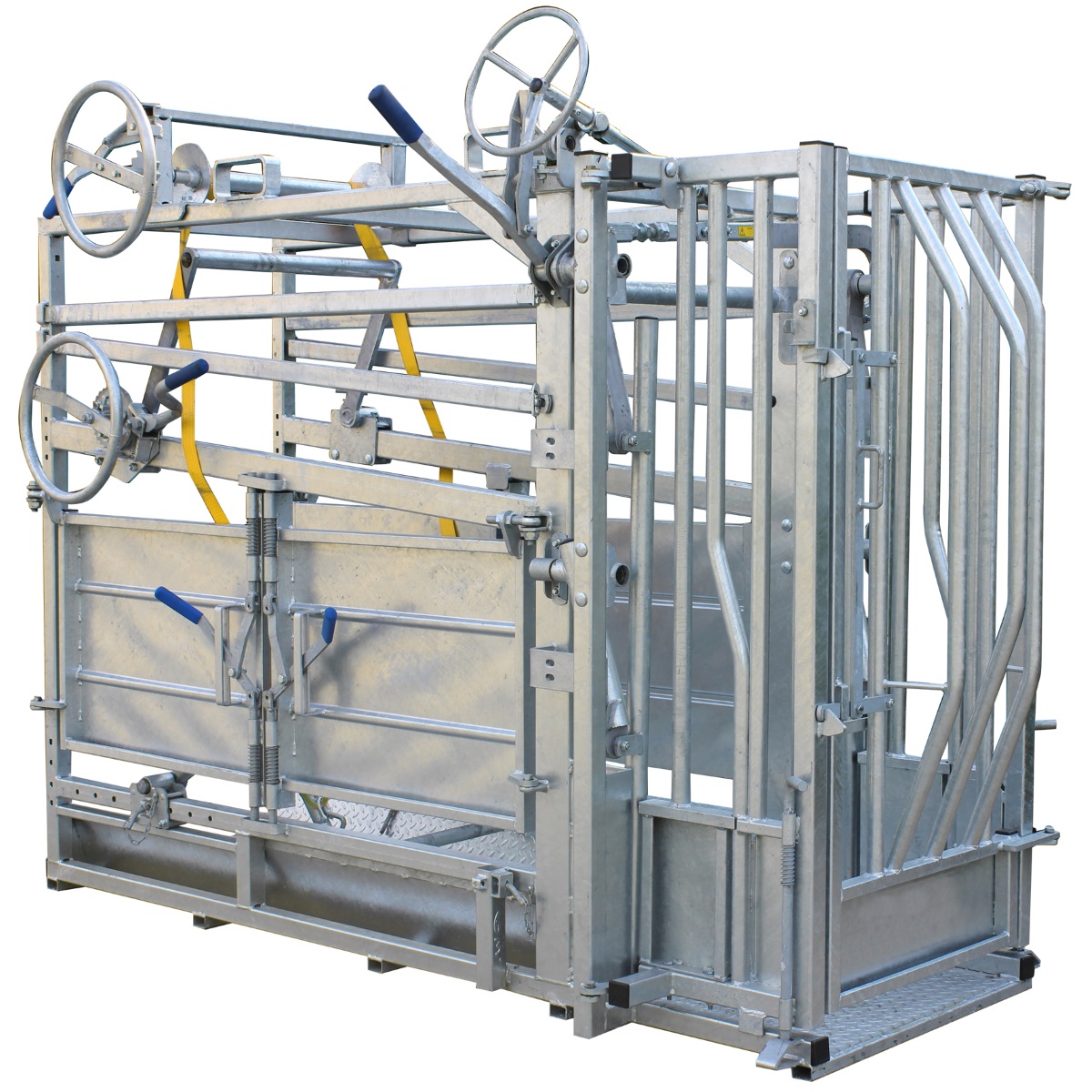

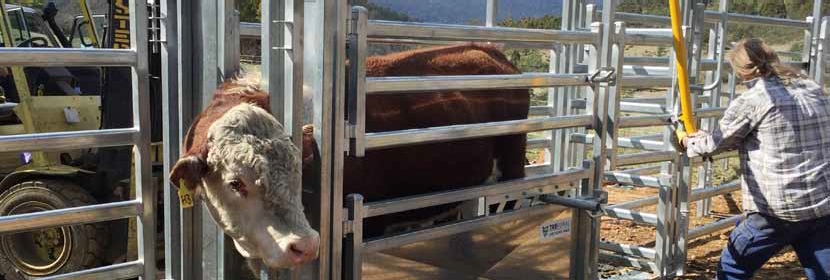

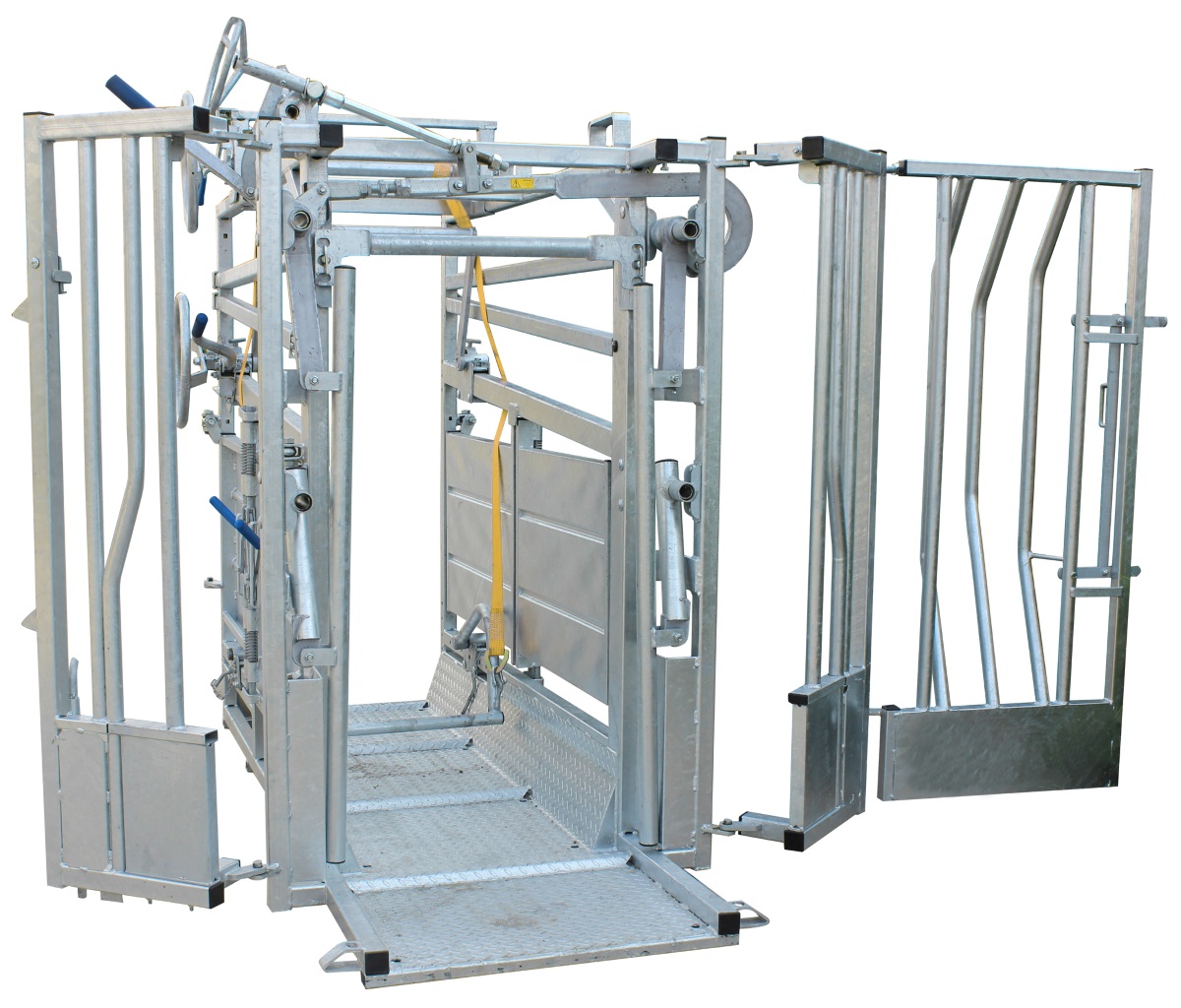

Cattle Crushes
5 types of cattle crush:

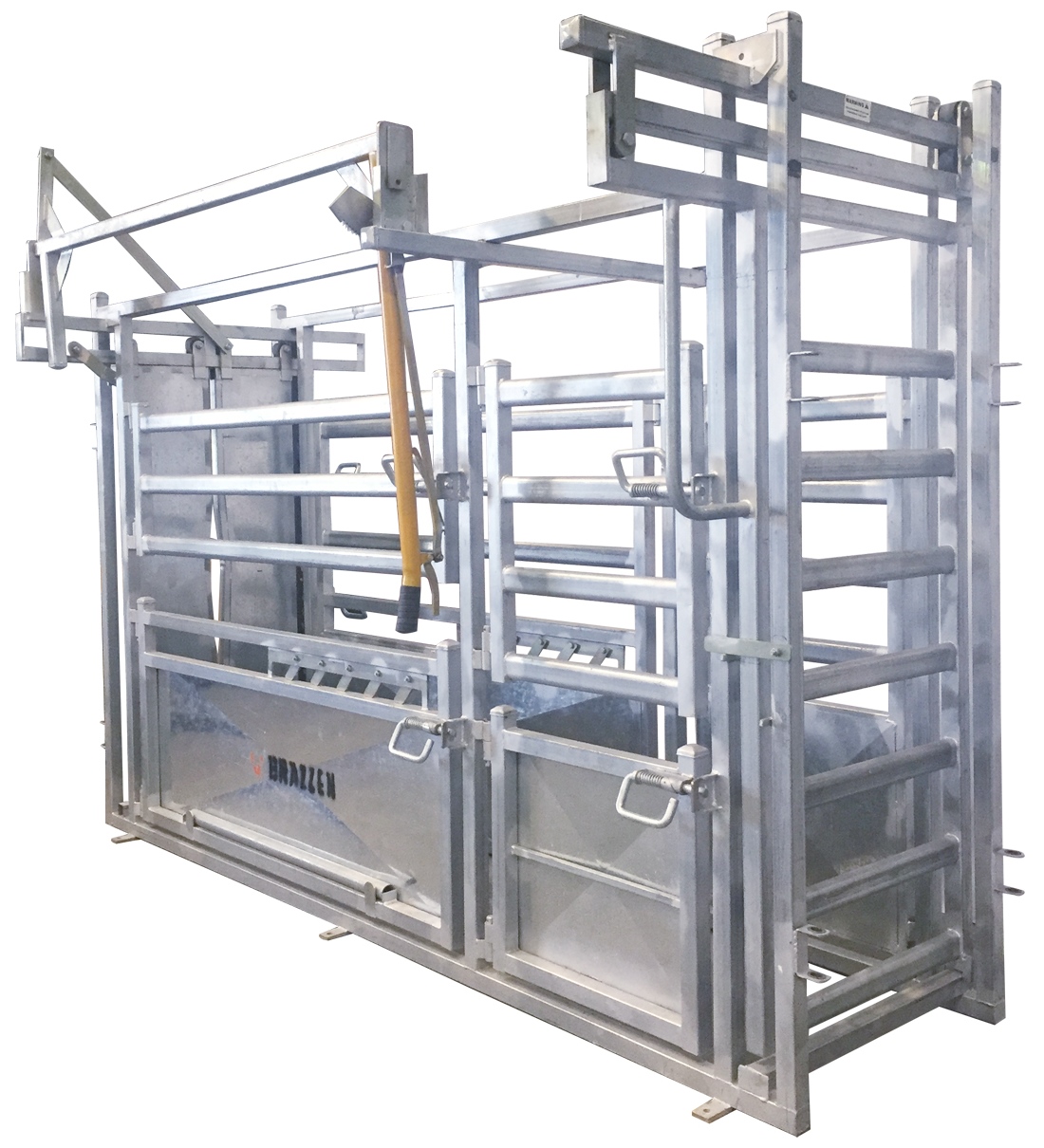

  1. Standard Crush

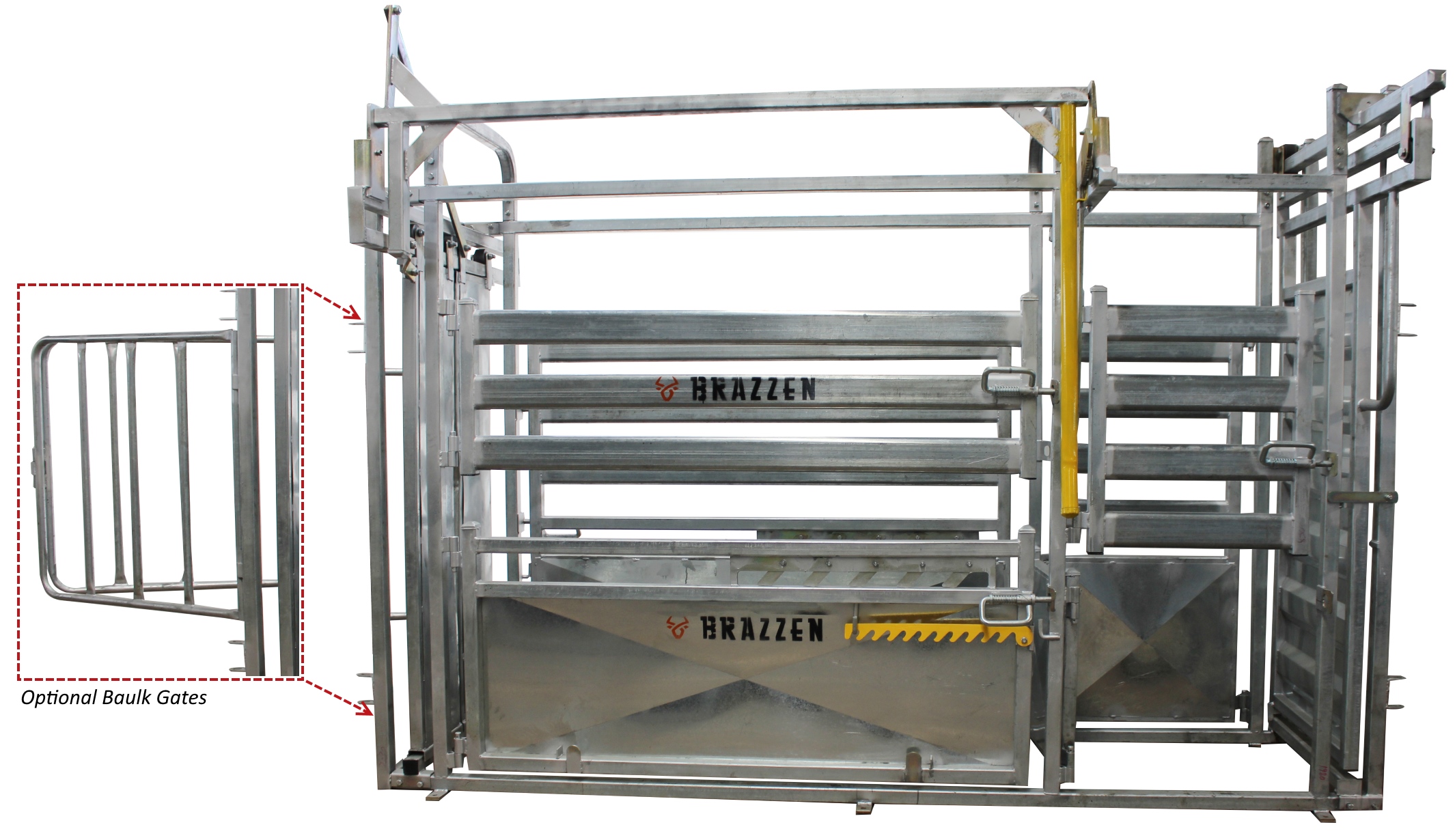

  2. Premium Crush
  3. Premium Squeeze Crush

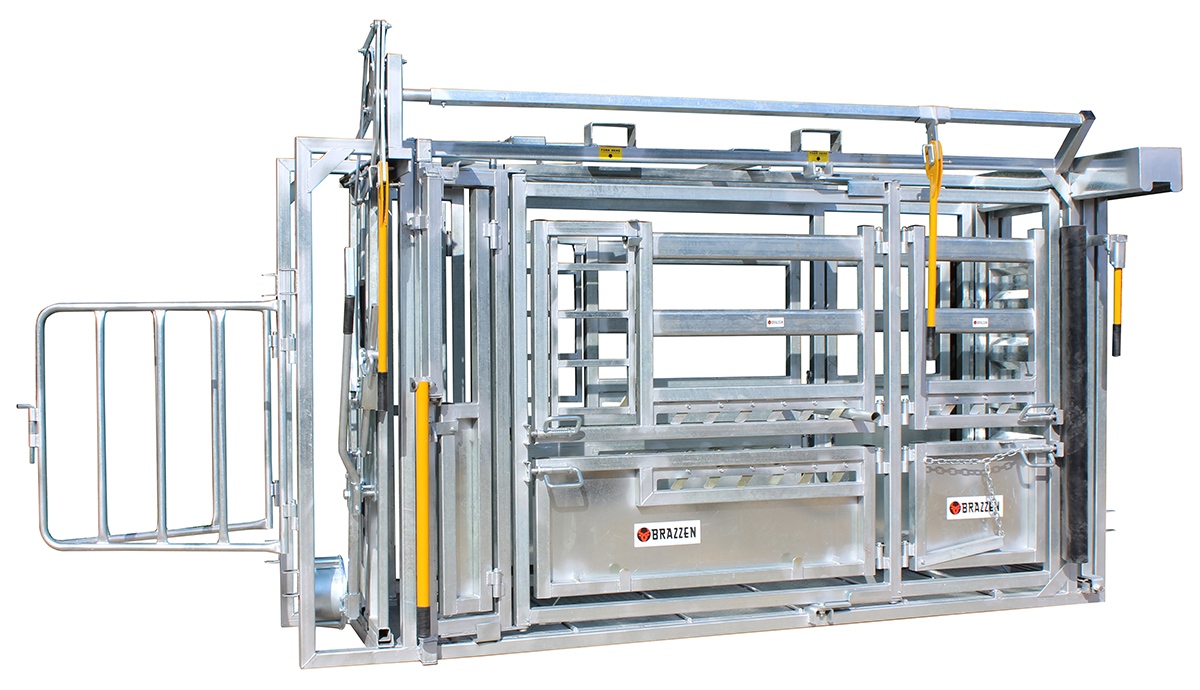

  4. Heavy Duty Squeeze Crush
  5. Dairy Cattle Crush

Features:

  • Anti Bruise Oval Rails
  • Sheeted head bail & bottom side gates for operator and animal safety
  • Auto Lock rear sliding gate
  • Innovative silent operation
  • Walk through vet section
  • Long ratchet rump bar mechanism

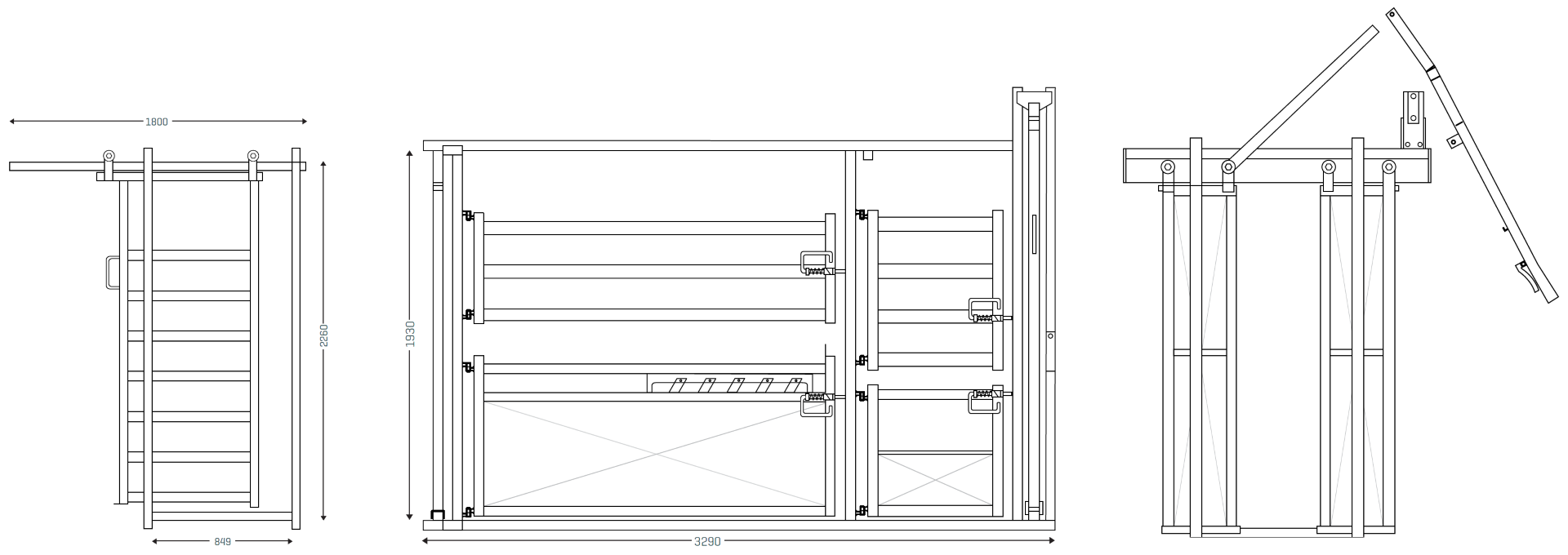

Cattle Crushes Width Depth Height Weight
Standard CCSFP 3350 (11') 700 (2.3') 2030 (6.7') 437kg
Premium CCPFP 3350 (11') 700 (2.3') 2030 (6.7') 654kg
Premium Squeeze CCPSFP 3350 (11') 700 (2.3') 2030 (6.7') 870kg
Heavy Duty CCHFB 3790 (12.8') 870 (2.8') 2155 (7.5') 1080kg
Dairy CCD 2740 (9') 838 (2.75') 1900 (6.23') 565kg
Standard Scales CS 1900 (6.23') 700 (2.3') 150 (0.49') 565kg

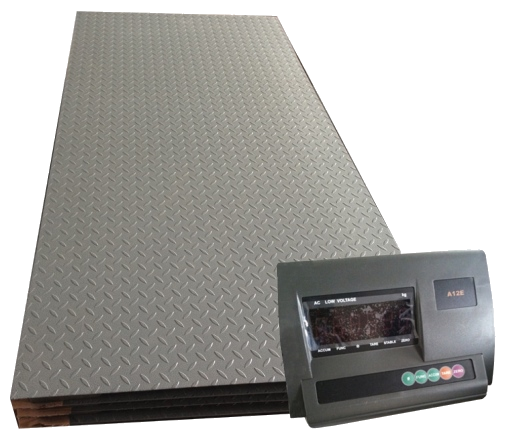

Scales Optional

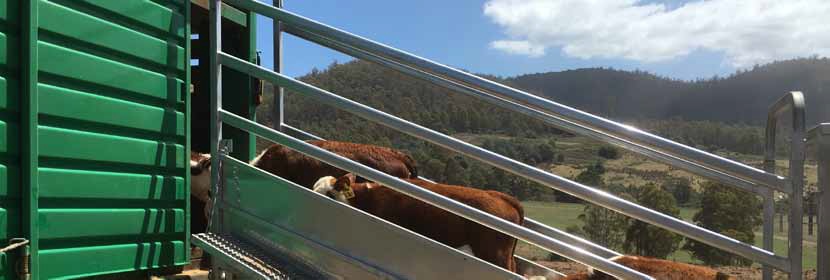

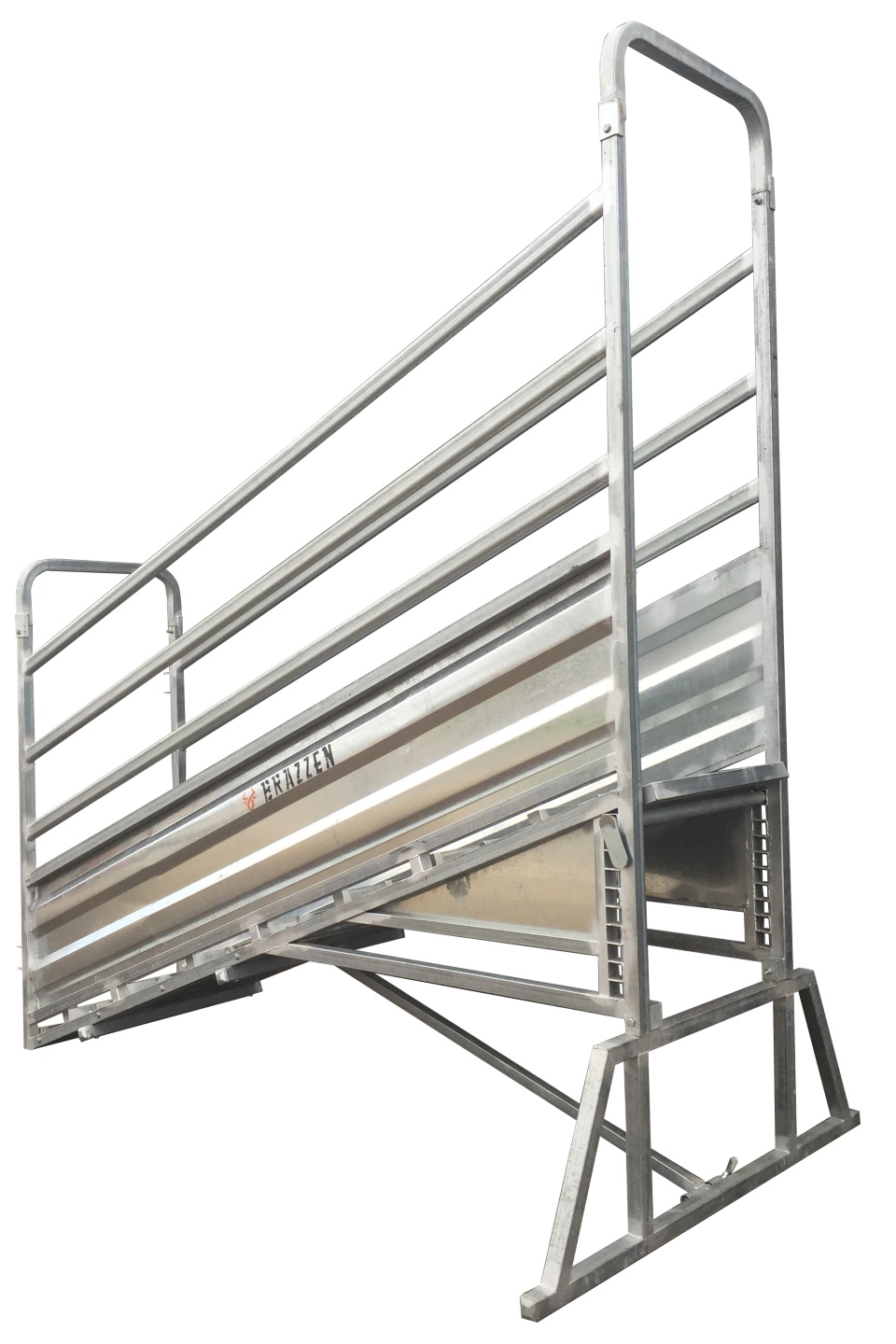

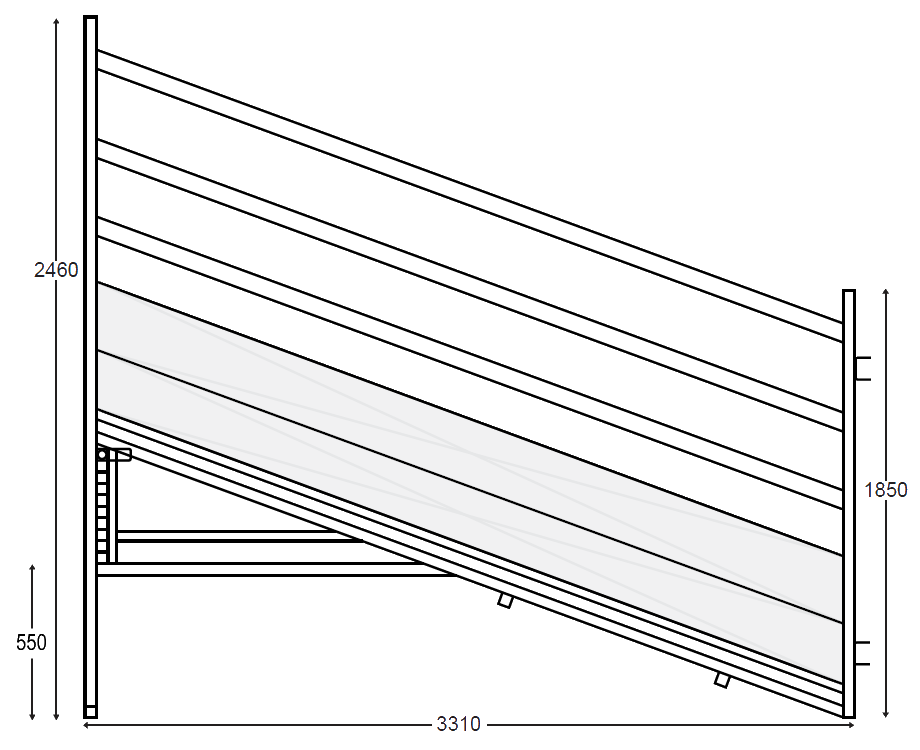

Cattle Ramps
6 types of cattle loading ramp:

  1. Standard Fixed Ramp

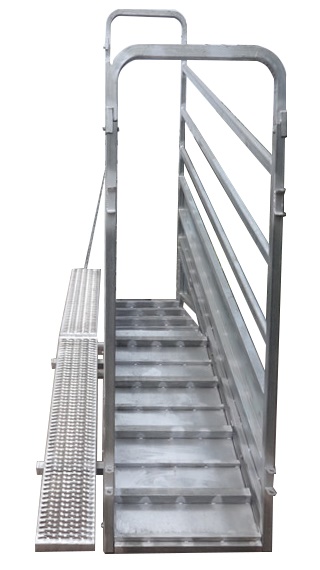

  2. Standard Fixed Ramp with handler's walkway

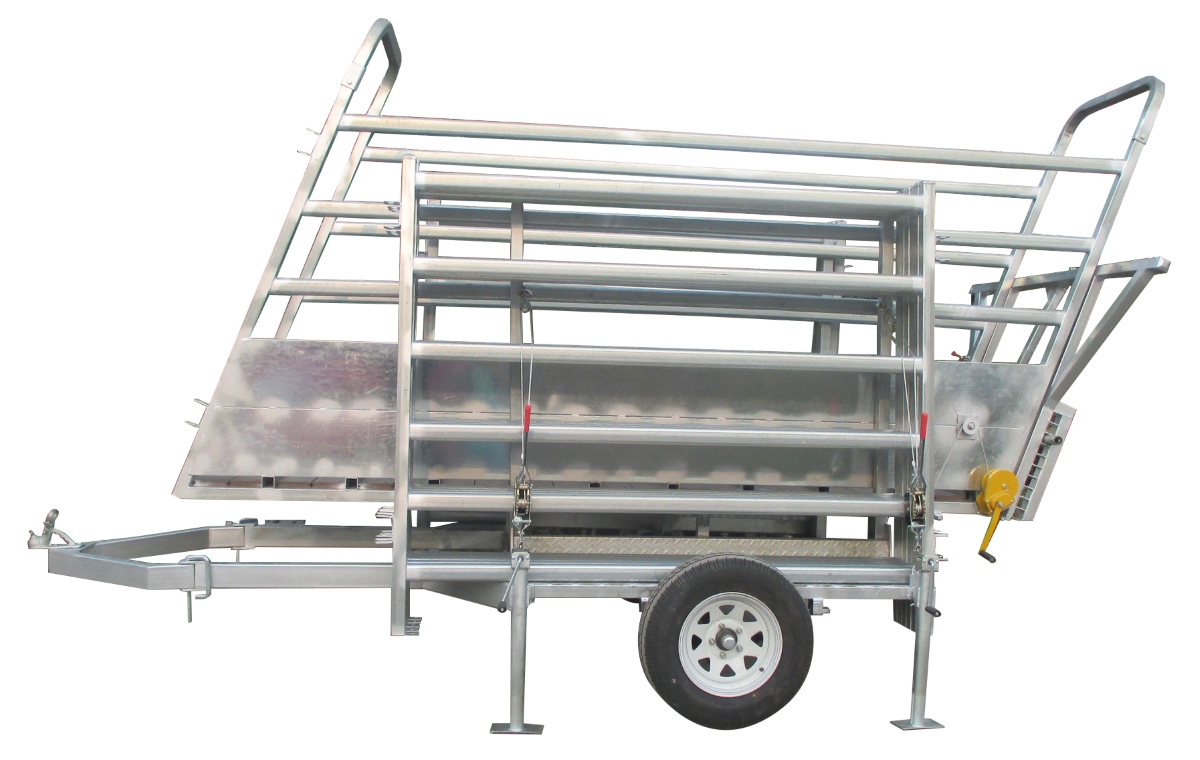

  3. Standard Mobile Ramp trailer
  4. Premium Fixed Ramp
  5. Premium Fixed Ramp with handler's walkway
  6. Premium Mobile Ramp trailer

Features:

  • Galvanised steel
  • Robust construction
  • Fully sheeted
  • Ramps have traction boards bolted onto steel floor
  • Designed to suit all cattle yards
  • Adjustable height
  • Fixed ramp available with detachable walkways on request
  • Mobile ramp includes 3.6m ramp with WPC board floor, 12 portable cattle panels and trailer

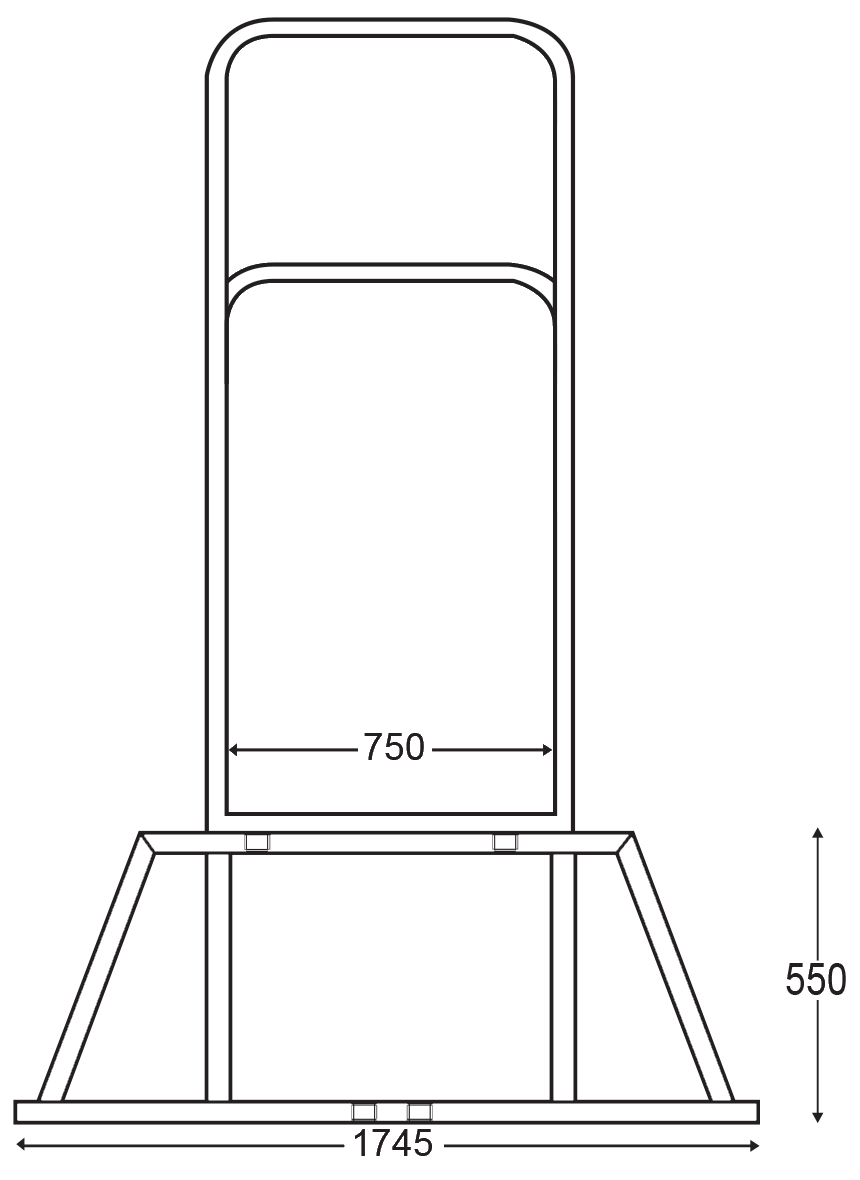

Cattle Ramps Width Depth Height Weight
Standard Fixed CRFP 3280 (10.76') 850 (2.78') 3350 (11') 264kg
Premium Fixed CRPFP 3280 (10.76') 850 (2.78') 3350 (11') 295kg
Ramp Walkway Kit CRWK 3400 60kg
Standard Mobile CRSM 5330 (17.5') 2240 (7.35') 2680 (8.8') 420kg
Premium Mobile CRPM 5330 (17.5') 2240 (7.35') 2680 (8.8') 545kg
Available with Handler's Side Ramp

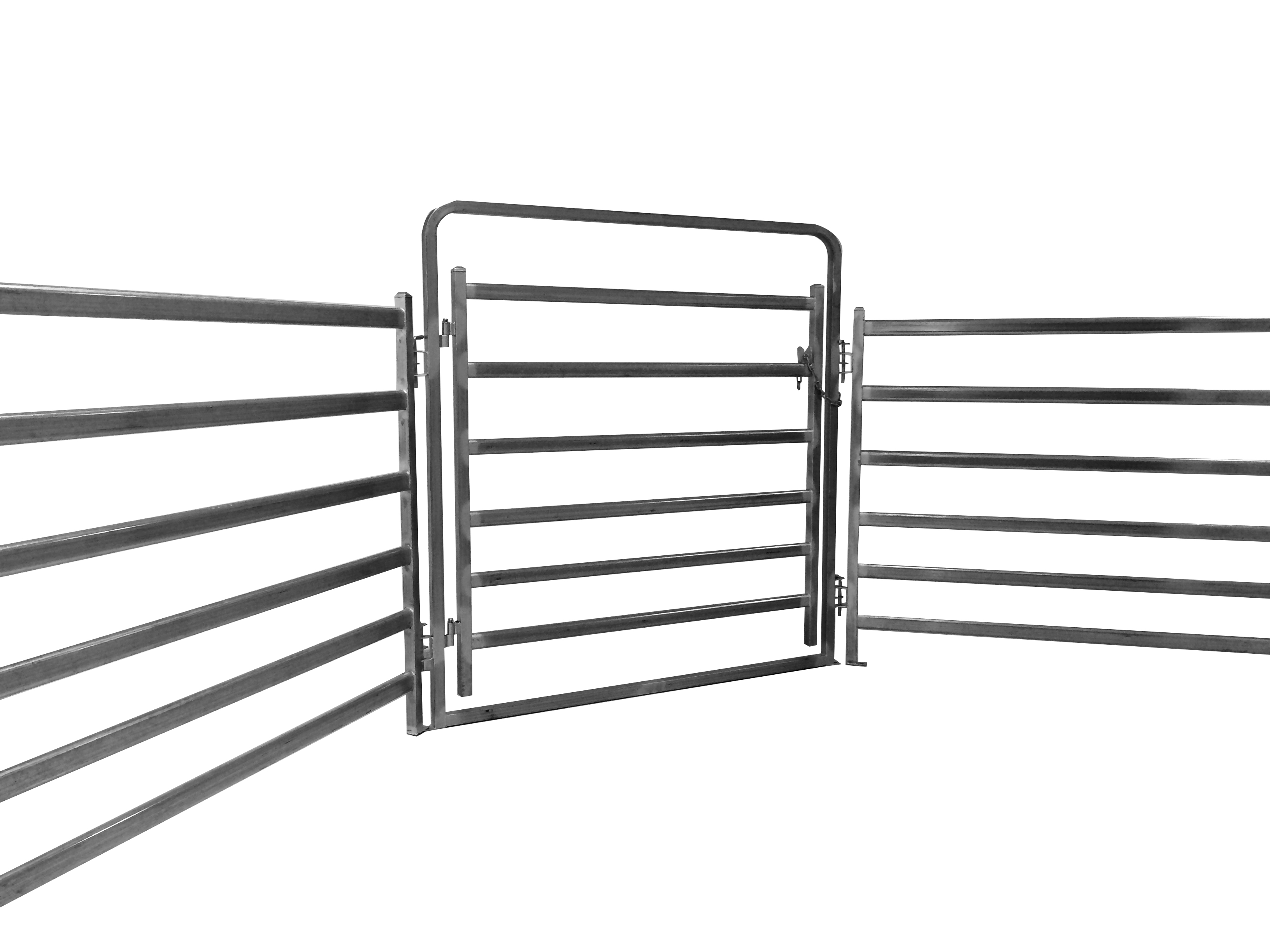

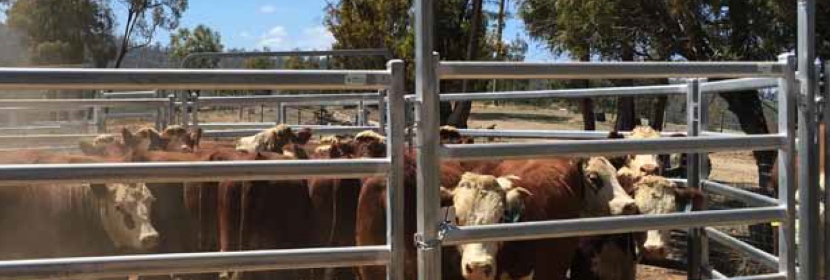

Cattle Gates
9 types of cattle gate:

  1. Budget Single Gate
  2. Standard Single Gate
  3. Premium Single Gate
  4. Double Gate
  5. Man Panel Gate
  6. Access Gate
  7. Sliding Gate
  8. UK Gate (7', 8' & 10')
  9. UK Sliding Gate

Features:

  • Galvanised steel
  • Robust construction
  • Animal friendly
  • Handy lugs for ground pinning
  • Designed to improve speed of stock flow
  • Available in chain and slam latch
Cattle Gates Width Depth Height Weight
Budget Single CGB2.1 2100 (6.89') 50 2200 (7.22') 61kg
Standard Single CGS2.1 2100 (6.89') 50 2200 (7.22') 73kg
Premium Single CGP2.1 2100 (6.89') 50 2200 (7.22') 77kg
Double CGSD 4200 (13.78') 50 2200 (7.22') 117kg
Man Panel CGSM 2100 (6.89') 50 1800 (5.90') 59kg
Access CGSA 1250 (4.10') 50 2200 (7.22') 46kg
Sliding CGSS 850 (2.79') 220 1970 (6.46') 79kg
UK 7' CHG2.1 2150 (7.0') 50 2050 (6.74') kg
UK 8' CHG2.4 2440 (8.0') 50 2050 (6.74') kg
UK 10' CHG3.0 3050 (10.0') 50 2050 (6.74') kg
UK Sliding UKCGS 840 (2.76') 155 2166 (7.10') 89kg
Available in 5 and 6 rail
Optional high bow

Cattle Panels

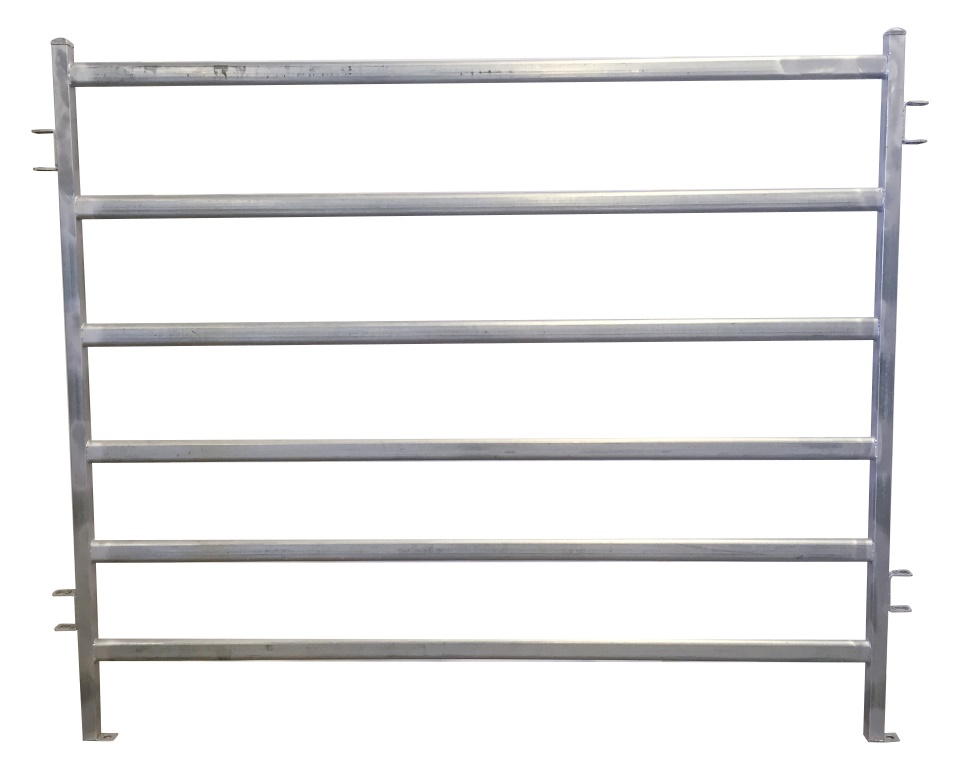

Budget Panel

This cost-effective panel is constructed from:

  • Oval 60mm x 30mm (2.36” x 1.18”) rails
  • 2 SHS 40mm x 40mm (1.57” x 1.57”) posts

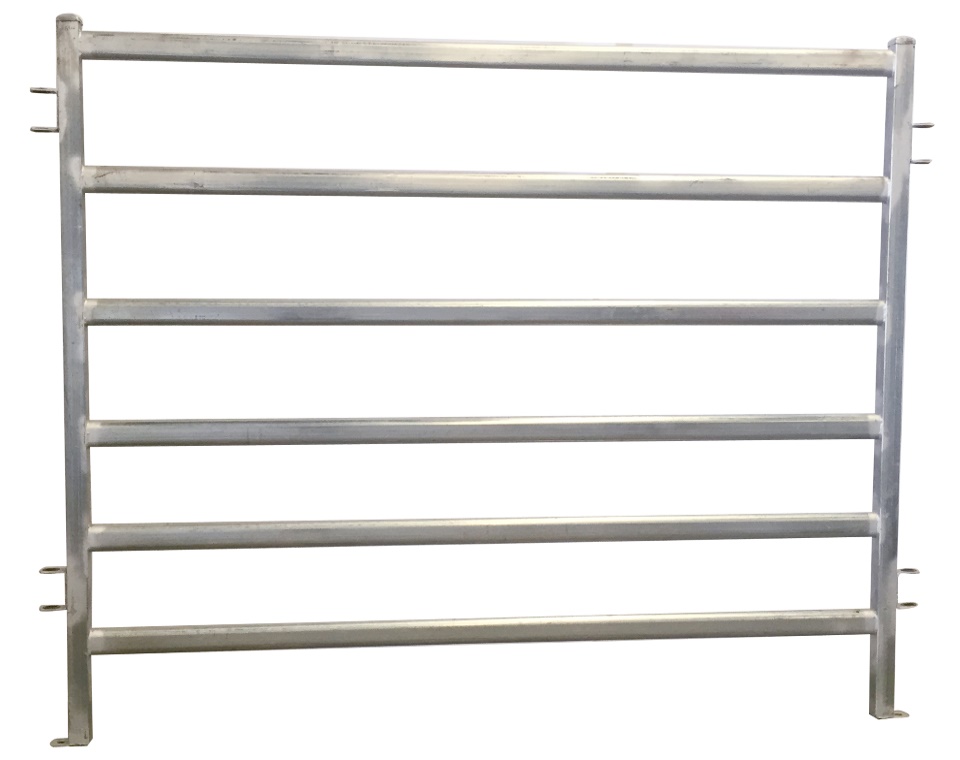

Standard Panel

This strong panel is constructed from:

  • Oval 70mm x 45mm (2.75” x 1.77”) rails
  • 2 SHS 50mm x 50mm (2” x 2”) posts

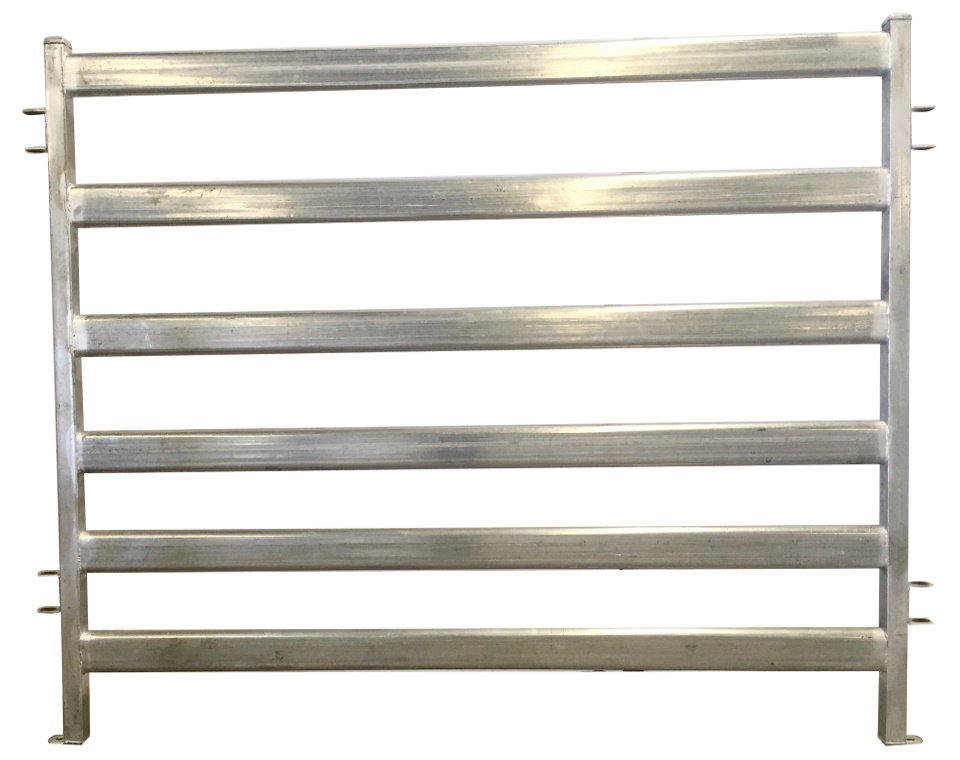

Premium Panel

This heavy duty panel is constructed from:

  • Oval 115mm x 42mm (4.52” x 1.65”) rails
  • 2 SHS 50mm x 50mm (2” x 2”) posts

All panels have 4 easy-to-connect lugs and 2 holes for ground pins.
All panels available in 5 and 6 rail, as well as 1m, 2m and 3m lengths (except Budget).

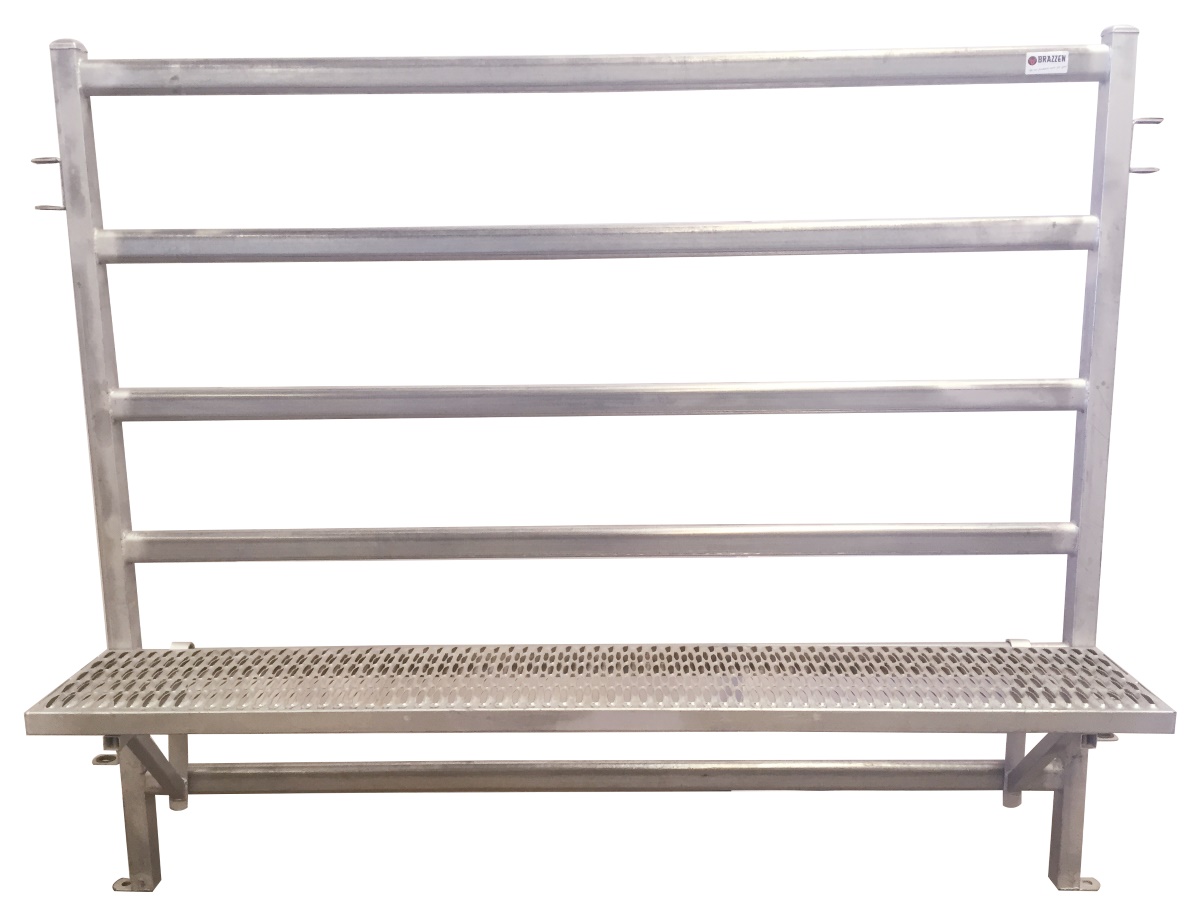

Optional Walkway can be attached
Cattle Panels H'zontal Uprights Rails Height Width Weight
Budget CPB2.1 60x30 40x40 6 1800 (5.91') 2100 (6.89') 30kg
Standard CPS2.1 70x40 50x50 6 1800 (5.91') 2100 (6.89') 35kg
Standard CPS2.4 70x40 50x50 6 1800 (5.91') 2400 (7.87') 41kg
Standard CPS3.35 70x40 50x50 6 1800 (5.91') 3350 (11') 55kg
Standard CPS3.78 70x40 50x50 6 1800 (5.91') 3700 (12.14') 59kg
Premium CPP2.1 115x40 50x50 6 1800 (5.91') 2100 (6.89') 43kg
Premium CPP2.4 115x40 50x50 6 1800 (5.91') 2400 (7.87') 55kg
Premium CPP3.35 115x40 50x50 6 1800 (5.91') 3350 (11') 74kg
Walkway Mesh CWWM
