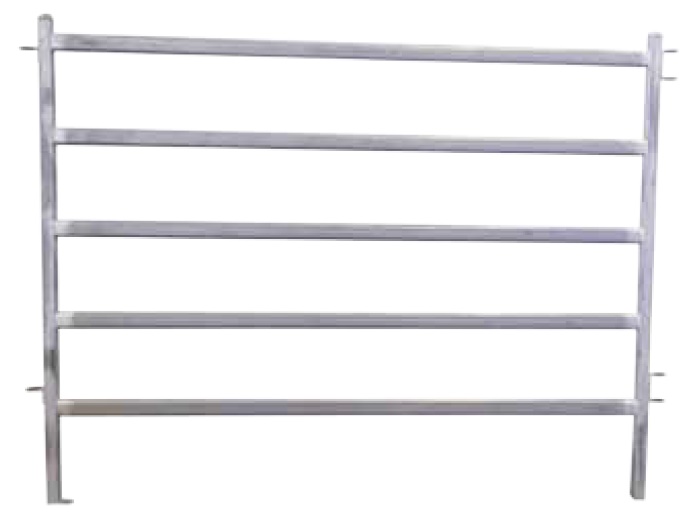

Horse Panel

Round Yard Specifications
10m 14 panels plus gate
12m 16 panels plus gate
13m 18 panels plus gate
14m 20 panels plus gate
15.5m 22 panels plus gate
16.7m 24 panels plus gate
18m 26 panels plus gate
20m 28 panels plus gate
Horse Panel H'zontal Uprights Rails Height Width Weight
HP2.1 60x30 40x40 5 1800 (5.90') 2100 (6.89') 23.5kg

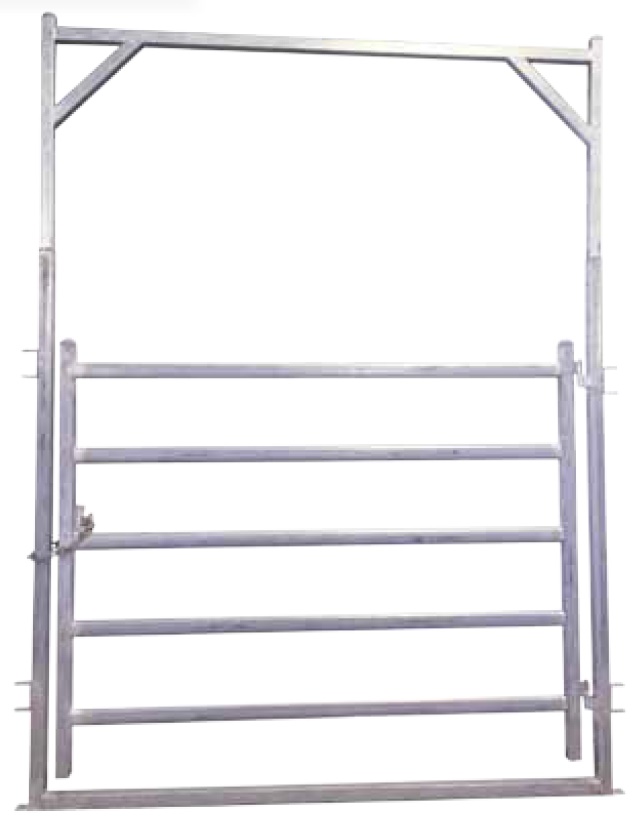

High Top Horse Gate

Horse Gate H'zontal Uprights Rails Height Width Weight
HG3.0 60x30 40x40 5 3000 (9.84') 2100 (6.89') 64kg

HORSE FLOATS

Double Straight Load - Standard

Double Standard   HFDS

  • Two Horse Straight Load Float-Standard
  • Body Dimension (L x W x H): 3075*1750*2230 mm
  • Inner Dimension (L x W x H): 3050*1700*2155 mm
  • Overall Dimension (L x W x H): 3925*2270*2590 mm
  • ATM: 2700kg
  • GTM: 2350kg
  • Tare: 1300kg
  • Coupling: 50mm,3500kg - AS4177.3
  • Suspension 5 leaf plate spring suspension
  • Spare Wheel
  • One axle electric brake with break-away systems
  • Horse divider soft cushion
  • 4 External Tie Hooks, two each side
  • Swing-up Jockey Wheel
  • 2 Roof Vents
  • Hay Rack in horse bay
  • Tailgate(upper) 2020x1065mm, pneumatic spring-loaded
  • Tailgate/Ramp Door 2020x1210mm, pneumatic spring-loaded, 10mm rubber cushion
  • Horse Area 10mm rubber floor
  • Side Area inner 6mm rubber cushion

Double Straight Load - Deluxe

Double Deluxe   HFDD

  • Body Dimension (L x W x H): 3475*1750*2230 mm
  • Inner Dimension (L x W x H): 3450*1700*2155 mm
  • Overall Dimension (L x W x H): 4325*2270*2590 mm
  • ATM: 2900kg
  • GTM: 2550kg
  • Tare: 1500kg
  • Coupling: 50mm,3500kg - AS4177.3
  • Swing-up Jockey Wheel
  • Suspension 6-leaf plate spring suspension
  • Double axles electric brake with break-away systems
  • Spare Wheel
  • Horse Divider soft cushion and fully padded with stallion head divider
  • A Kitchen with sink and a cupboard
  • 2 Roof Vents
  • Saddle Stents hangers in saddle box
  • Toolbox 800x550x200mm, made of stainless or aluminium
  • Front Rug Rack
  • Front Tack Box
  • Tailgate(upper) 1800x1065mm, pneumatic spring-loaded
  • Tailgate/Ramp Door 1800x1210mm, pneumatic spring-loaded, 10mm rubber matting
  • Horse Area 10mm rubber floor
  • Side Area Inner 6mm rubber matting
  • 2 Fold Up Beds in horse area

Triple Angle Load - Standard

Triple Standard   HFTS

  • Body Dimension (L x W x H) : 4575*1980*2230 mm
  • Inner Dimension (L x W x H) : 4550*1930*2155 mm
  • Overall Dimension (L x W x H): 5425*2278*2590 mm
  • ATM: 3500kg
  • GTM: 3150kg
  • Tare: 1800kg
  • Coupling: 50mm,3500kg - AS4177.3
  • Roll rocker tandem spring suspension 6 plates
  • Double axles electric brakes with break-away systems
  • Spare Wheel
  • Double sash casement vent
  • Struts are high-intensity anti-rust strut
  • Horse protection frame fully padded
  • 6 Horse Rings
  • 2 Roof Vents
  • Ramp Door 10mm rubber matting
  • Floor 10mm rubber matting
  • Inner Side Panel 6mm rubber matting
  • Rug rack inside
  • Saddle rack in saddle box
  • Saddle box 1500mm height for 3 saddles
  • Horse Area 10mm rubber floor
  • Side Area Inner 6mm rubber matting
  • 2 Fold Up Beds in horse area
